Find software and remote-access solutions for your ESPEC chamber. It is important to figure out what controller your system has and which interfaces are installed. Our customer support team can help you with adding interfaces to existing equipment. Software and drivers for older controllers are typically unsupported.

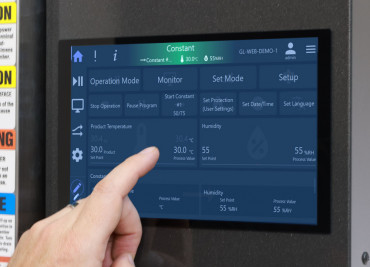

P-300

Flagship controller used on most ESPEC North America chambers (except benchtops).

  • Touch-screen
  • USB access
See P-300 software
Watlow F4T

Current controler for BT/Criterion benchtop chambers made in the USA.

  • Touch-screen
  • Ethernet with Modbus
See Watlow F4T software
Qualmark

Software & hardware upgrades for Qualmark chambers

  • Qualmark Manager Software
  • OVS Vibration Control
  • QDaq - Data Aquisition
See Qualmark software
SCP-220

Used on most ESPEC North America chambers 1997-2013.

See SCP-220 software
Watlow F4

Found on BT/Criterion/benchtop chambers 2006-2015

See Watlow F4 software
Other

Other controllers & software available:

  • ES-102 controller
  • Chino recorders
  • Yokogawa recorders
See Other software
P-200

Flagship controller used on the Benchtop Temperature & Humidity Chambers (SU/SH).

  • Touch-screen
  • USB & Ethernet access
See P-200 software


P-300

Current models: Most models made in USA since 2012

“N-instrumentation” family also includes P-200 (on SU/SH benchtops) and P-310 on thermal shocks. Software below is not designed for these versions.

Software Interface Notes link

Pattern Manager Lite

USB

Allows upload/download of test profiles. Downloaded data in secure format can be converted to CSV or displayed.

Pattern Manager Lite download (zip)

Chamber Connect Software

RS-232/485

Basic monitoring and datalogging app for F4/F4T/SCP-220/P-300 (cannot be used concurrently with Web Controller)

Buy from ESPEC (online store)

Labview drivers

RS-232/485

for VISA 5.0+

Labview drivers at ni.com (link)

Web Controller v2

Ethernet

Full access to P-300 via web browser. RESTful API and command forwarding for external applications.

Buy from ESPEC. Learn more here.

Chamber Connect Library

Serial/RS-232 or Ethernet

As-is source code for custom programming

at Github.com


Watlow F4T

Current models:
Criterion Benchtop (BTL, BTU, BTX, BTZ with stainless steel door)

Software Interface Notes link

Chamber Connect Software

Ethernet

Basic monitoring and datalogging app for F4/F4T/SCP-220/P-300 (cannot be used concurrently with Web Controller)

Buy from ESPEC (online store)

Web Controller v2

Ethernet

Full access to F4T via web browser. RESTful API and command forwarding for external applications.

Buy from ESPEC. Learn more here.

Chamber Connect Library

Ethernet

As-is source code for custom programming

at Github.com

Labview drivers

Ethernet or RS-232

Modbus protocol drivers from Watlow.

Watlow F4T page (software & demos)

New Qualmark HALT control systems:

  • Windows 10 system with Labview based operation and PLC-based controls
  • Programming, operation, and datalogging for vibration/thermal profiles.
  • One accelerometer for table control (three additional inputs available)
  • Two thermocouples: one for product, one for air (four additional inputs available)
  • Eight event relays for external controls
  • Optional Q-Link or Qualview software tools for ATE integration and other remote connections.
  • Optional QDaq - Qualmark Data Acquisition System

Upgrades:

  • System software upgrades
  • OVS vibration control upgrade using Allen Bradley PLC hardware
  • Integrated temperature/vibration control using ESPEC hardware


SCP-220

Past models: Platinous, Global-N, most others made in USA prior to 2014

Recommended: Modernize your SCP-220 with ESPEC's Web Controller for the ultimate in remote programming and control.

Software Interface Notes link

ERC-100S

RS-232

Basic program for remote program and datalogging access. Windows XP only, no longer supported.

ERC-100S download (v1.21 zip)

Chamber Connect Software

RS-232/485

Basic monitoring and datalogging app for F4/F4T/SCP-220/P-300 (cannot be used concurrently with Web Controller)

Buy from ESPEC (online store)

Chamber Connect Library

Serial/RS-232/485

As-is source code for custom programming

at Github.com

Labview drivers

RS-232/485

for VISA 5.0+

Labview drivers at ni.com (link)
For GP-IB: Version 8 or Version 11 (zip)

Web Controller v2

Ethernet

Full access to SCP-220 via web browser. RESTful API and command forwarding for external applications.

Buy from ESPEC. Learn more here.


Watlow F4

Past models: Criterion Benchtop (BTL, BTU, BTX, BTZ with slate-blue door/console prior to 2016)

Recommended: Modernize your F4 with ESPEC's Web Controller for the ultimate in remote programming and control.

Software Interface Notes link

Watview HMI Configuarator

RS-232

Only works on Windows XP

Watview HMI Configurator software (via Watlow.com)

Chamber Connect Software

RS-232/485

Basic monitoring and datalogging app for F4/F4T/SCP-220/P-300 (cannot be used concurrently with Web Controller)

Buy from ESPEC (online store)

Chamber Connect Library

Serial/RS-232/485

As-is source code for custom programming

at Github.com

Labview drivers
(VISA 4.6+)

RS-232/485

Posted at National Instruments “Instrument Driver Network”

F4 Drivers (at ni.com)

ES-102 Controller:

Used on:

  • ZoneOne (EZO30-EA, EZO60-EA) prior to 2014
  • SU/SH Benchtop prior to 2014 (last digit in model is a '1')

Software:

  • Basic program for remote program and datalogging access, requires RS-232 & Windows XP only, no longer supported. ERC-100SII software
  • LabView Drivers. Requires IEEE-488/GP-IB: Version 8 or Version 11 (zip)

Paperless Chart Recorders

DAQStandard software for chambers with Yokogawa Paperless Recorders (DX or FX versions)


P-200

Current models: Most models made in the USA since 2013

“N-instrumentation” family also includes P-300 (except benchtops) and P-310 on thermal shocks. Software below is not designed for these versions.

Software Interface Notes Links

Pattern Manager Lite

USB

Allows upload/download of test profiles. Downloaded data in secure format can be converted to CSV or displayed. Write/read sampling data and program, backtrace output

Pattern Manager Lite download (zip)

Labview drivers

RS-232/485

As-is drivers for custom programming

Labview drivers at ni.com

Chamber Connect Library

Serial/RS-232 or Ethernet

As-is source code for custom programming

at Github.com
